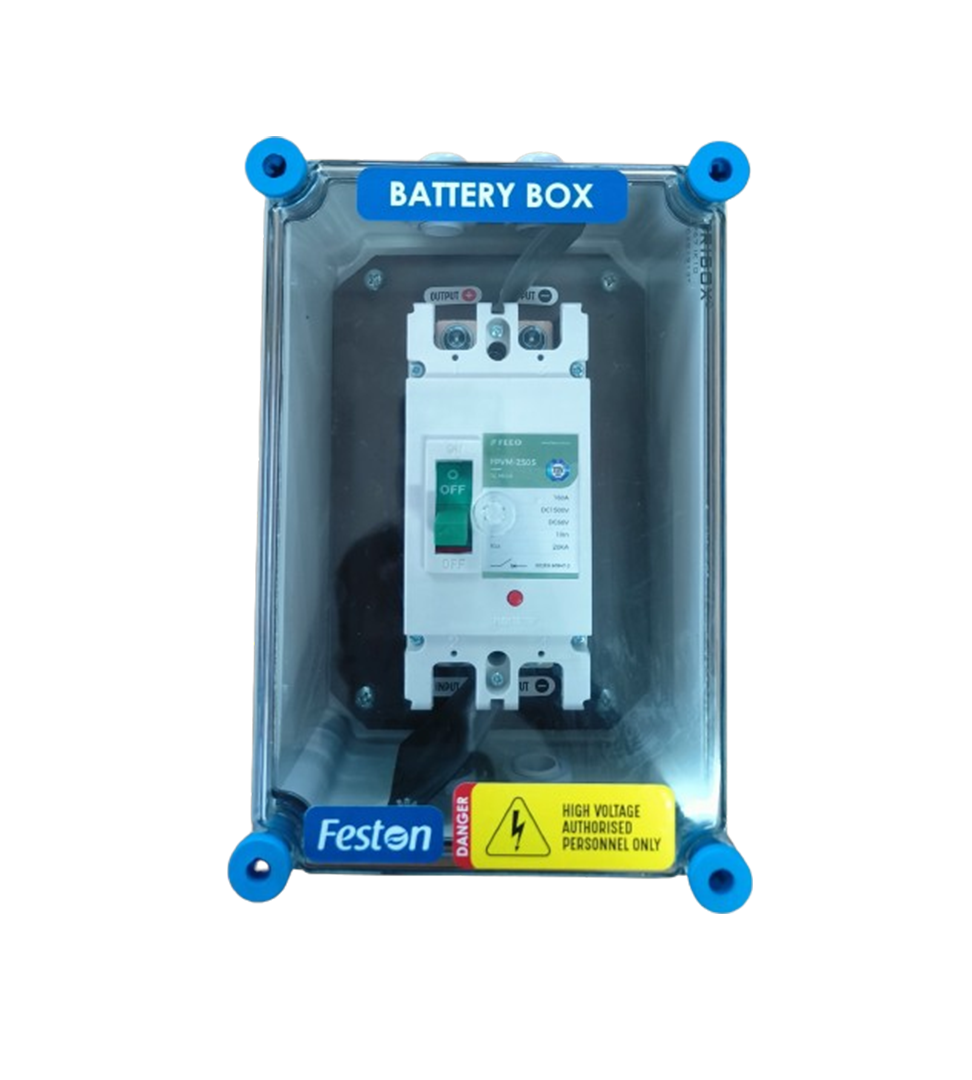

Battery box

Battery Box is suitable for accompanying Hybrid inverters

Battery Box provides overcurrent protection and MCB is provided to disconnect the battery from the inverter for operational maintenance. Battery Inputs are taken through the wire glands provided at the bottom of the Box. Outputs are taken through the wire glands provided at the top of the box to the inverter.

Product Specification

model	3-6kW \| Single phase	8-12kW \| Three phase	8kW \| Single phase	5-6kW \| Three phase

Box Type	Tribox	Tribox	Tribox	Tribox
Box Size	190x280x130	190x280x130	190x280x130	190x280x130
DC MCCB Rating	2 pole \| 66 V \| breaks 160 A	2 pole \| 66 V \| breaks 250 A	2 pole \| 66 V \| breaks 250 A	2 pole \| 66 V \| breaks 160 A
No. of Strings	Gland	Gland	Gland	Gland
IP Rating	IP66, IP67	IP66, IP67	IP66, IP67	IP66, IP67
Material Type	Polycarbonate \| Glass Top	Polycarbonate \| Glass Top	Polycarbonate \| Glass Top	Polycarbonate \| Glass Top
Connectors	Gland	Gland	Gland	Gland
