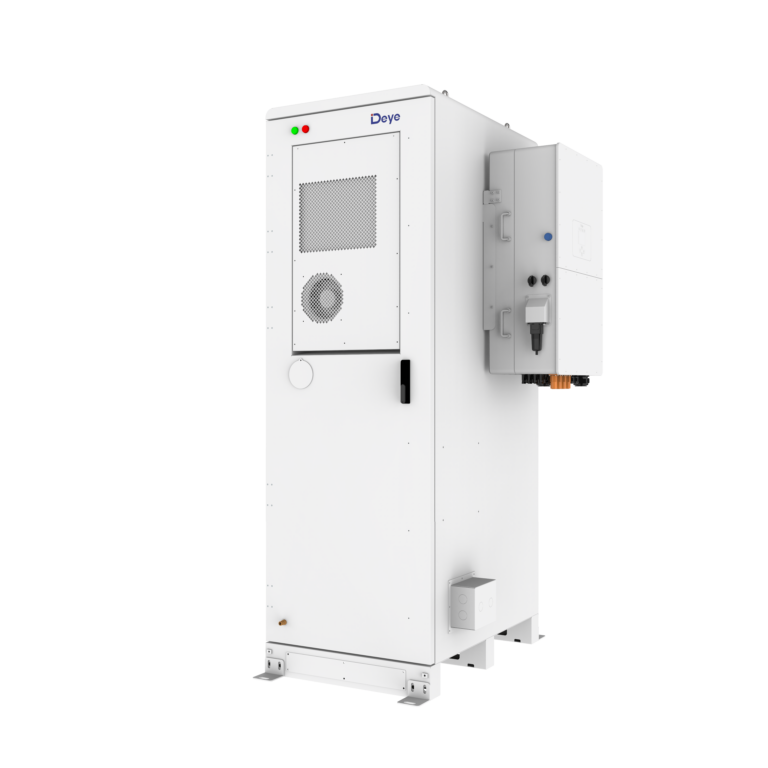

GE-F60-EU(HV)
As an all-in-one system, it is your ideal solution for a power storage battery for your home.
The GE-F60-EU(HV) is an ideal solution for power storage battery for home or commercial centers needing high power backup or off-grid supply, as well as frequency regulation or renewable integration. It can work with solar, wind, diesel generators and grid supply. Safety is a key focus with multiple alarms, exhaust ventilation, and automatic fire suppression using aerosol extinguishing.
- Intelligent temperature control
Built-in air conditioner, the maximum temperature of the battery is less than 40℃ - Reliable
Positive Balance Intelligent BMS, providing complete protection, can effectively extend cycle life of battery packs - Flexible
EMS and BMS integrated technology, AC/DC power supply redundancy design, support black start function - Safer
Prismatic Lithium Iron Phosphate (LFP) Battery, The battery pack and systemadopt an aerosol fire extinguishing solution
Product Specification
| model | GE-F60 |
| System Specification | |
| Nominal Output Power/UPS Power (W) | 50000 |
| AC Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac |
| Grid Type | Three phase |
| Energy Configuration (kWh) | 61.4 |
| Dimension (W x D x H,mm) | 735x1045x2235 (no contain inverter) |
| Weight Appr. (kg) | 1015 (no contain inverter) |
| AC Output Rated Current (A) | 75.8 |
| Battery Operating Voltage (V) | 500 ~ 700 |
| Battery Chemistry | LiFePO4 |
| IP Rating of Enclosure | IP55 |
| System Certification | UN38.3, IEC62619, CE, CEI 0-21, VDE-AR-N 4105, IEC 62109 |
| Installation Style | Floor-Mounted |
| Warranty | 10 years |
| Inverter Technical Specification | |
| Max. PV Input Power (W) | 65000 |
| Max. PV Input Current (A) | 36+36+36+36 |
| Rated PV Input Voltage (Vdc) | 600 |
| Start Up DC Voltage (Vdc) | 180 |
| MPPT Voltage Range (Vdc) | 150-850 |
| Max. PV Short-circuit Current (A) | 44+44+44+44 |
| Number of MPPT | 4 |
| Peak Power (off grid) | 1.5 time of rated power, 10s |
| Power Factor | 0.8 leading to 0.8 lagging |
| THD | <3% |
| DC injection current (mA) | <0.5ln |
| Display | LCD |
| Operating Temperature Range (℃) | -40~60( >45℃ derating) |
| Relative Humidity | 15% ~ 85% (No Condensing) |
| Dimension (W x D x H, mm) | 420x233x670 |
| Inverter Communication | CAN, RS485, WIFI, ETH |
| Safety EMC / Standard | UL1741, FCC, IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 |
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
| Max. Efficiency | 97.6% |
| Max. charging/discharging efficiency | 91% |
| Battery Technical Specification | |
| Battery Module Nominal Voltage (V) | 51.2 |
| Battery Module Energy (kWh) | 5.12 |
| BMS Communication | CAN |
| Battery Module Dimension(W*D*H mm) | 440x570x133 |
| Battery Module Weight (kg) | 45 |
| Operating Temperature Range | Charge: 0～55℃ / Discharge: -20℃～55℃ |
| Cycle Life | ≥6000(@25℃±2℃,0.5C/0.5C,70%EOL) |
| Battery Module Certification | CE, IEC62619, IEC62040, UN38.3 |
