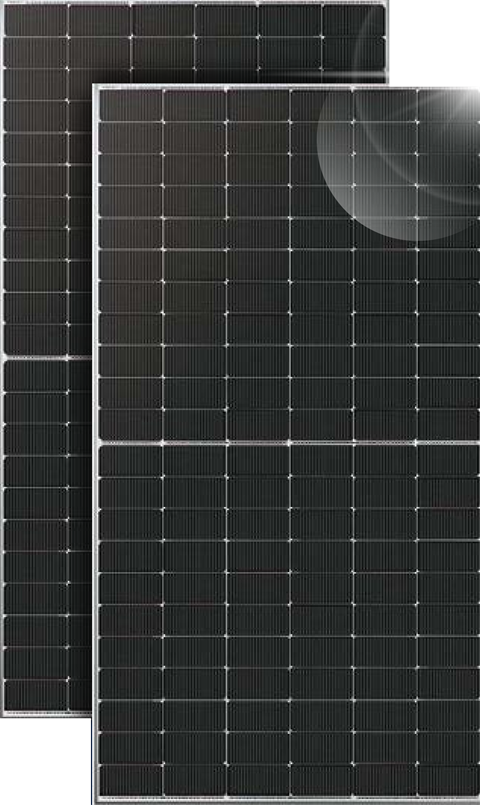

Avaada Integlow M10L - G2G
"N" TOPCon | Bifacial Glass to Glass | 144 Cells | 585 - 610 Wp
610 Wp Maximum Power Output | 23.60% Maximum Efficiency | 0~+5W Power Tolerance | 16 BB
- Up to 610 Wp output with 23.60% module efficiency
- N-type TOPCon cells with 16 busbars
- Up to 30% additional power generation gain from the rear side, depending on albedo
- Low LID (Light Induced Degradation) thanks to the N-type silicon substrate
- Lower LCOE - high bifaciality and high power output, saving BOS cost
- Better weak illumination response - higher output in smog or on cloudy days
- Better temperature coefficient for performance in hot climates
- Wider applicability - vertical installation, snowfields and high-humidity areas
- 12 years workmanship and 30 years linear performance warranty
Product Specification
| model | Integlow M10L 585 - 610 |
| Electrical data- All data measured to STC* | |
| Peak power, (0 ~+ 4.99 Wp) Pmax(Wp) | 585 - 610 |
| Maximum voltage, Vmpp (V) | — |
| Maximum current, Impp (A) | — |
| Open circuit voltage, Voc (V) | — |
| Short circuit current, Isc (A) | — |
| Module efficiency (%) | Up to 23.60 |
| Packaging Configuration | |
| Container | 40'HQ |
| Pallets / Container | 20 |
| Pieces / Container | 620 |
| Temperature co-efficients(Tc) and permissable operating conditions | |
| T of open circuit voltage (β) | -0.25% /°C |
| T of short circuit current (α) | 0.04% /°C |
| T of power ( ) | -0.30% /°C |
| Maximum system voltage | 1500 VDC |
| NOCT | 45°C ± 2°C |
| Temperature range | -40°C to + 85°C |
| Mechanical Data | |
| Length | 2278 mm |
| Width | 1134 mm |
| Height | 35 mm |
| Weight | 32 kg |
| Junction Box | IP68 certified, 3 diodes |
| Cable and connectors | Solar cable 4 mm², 1000 mm / customised, MC4-compatible connectors |
| Application class | — |
| Cells | N-type TOPCon, MBB 144 cells |
| Encapsulation | POE / EPE / EVA |
| Superstrate | 2.0 mm anti-reflection coated glass |
| Substrate | 2.0 mm semi-tempered glass |
| Frame | Anodized aluminium alloy |
| Design Mechanical Load | — |
| Safety Factor for Mechanical Load | — |
| Maximum series fuse rating | — |
