Authorized AVAADA Solar Modules Distributor in Tamil Nadu
- AVN66G12G
- N-type Bifacial – Glass to Glass
- 132 Cells
- 720 Watt
- > 23.18% Efficiency
Festa Solar supplies Avaada Enlume "N" TOPCon solar modules across Tamil Nadu. Rated 700 – 720 Wp, these bifacial glass-to-glass panels deliver extra energy from the rear side, hold up in hot climates and are backed by a 12-year workmanship and 30-year linear performance warranty.
Enquire NowWhy Avaada TOPCon Modules
Six advantages of N-type TOPCon bifacial technology
Up to 30% Additional Power Generation Gain
Rear side captures reflected light from the ground or roof, adding power based on albedo.
Low LID (Light Induced Degradation)
N-type substrate keeps light-induced degradation low, with just 1% in the first year.
Lower LCOE
High bifaciality and output mean fewer modules per kW, saving BOS and energy cost.
Better Weak Illumination Response
Wide spectral response and higher power output even in low light, such as smog or cloudy days.
Better Temperature Coefficient
TOPCon cells have a better temperature coefficient, which helps performance in hot climates.
Wider Applicability
Suitable for vertical installation, snowfields and high-humidity areas.
Key Features
Fully automatic facility with cutting-edge technology
Guaranteed positive tolerance to ensure power output reliability
Split junction boxes reduce module temperature, increasing module reliability
Quality & Reliability
IP68 rated junction box for long-term weather endurance
Made with high-grade raw materials for quality, durability, efficiency and throughput
12 years workmanship and 30 years linear performance warranty
Electrical Parameters
Module type AVN66G12G
| Capacity rating – Pmax (Wp) | 700 | 705 | 710 | 715 | 720 |
|---|---|---|---|---|---|
| Rated voltage – Vmp (V) | 40.5 | 40.7 | 40.9 | 41.1 | 41.3 |
| Rated current – Imp (A) | 17.29 | 17.33 | 17.36 | 17.40 | 17.43 |
| Open circuit voltage – Voc (V) | 48.2 | 48.4 | 48.6 | 48.8 | 49.0 |
| Short circuit current – Isc (A) | 18.32 | 18.36 | 18.40 | 18.44 | 18.48 |
| Module efficiency (%) | 22.53 | 22.70 | 22.86 | 23.02 | 23.18 |
STC: Irradiance 1000 W/m², cell temperature 25 °C, air mass AM1.5. Measuring tolerance ±3%.
Mechanical & Operating Specifications
Mechanical Specification
- Solar cells
- N-type TOPCon, MBB, 132 cells
- Encapsulation
- POE / EPE / EVA
- Front glass
- 2.0 mm, anti-reflection coated
- Back glass
- 2.0 mm, semi-tempered glass
- Frame
- Anodized aluminium alloy
- Dimensions
- 2384 × 1303 × 35 mm (L × W × H)
- Weight
- 38 kg
- Junction box
- IP68 certified, 3 diodes
- Cable
- Solar cable 4 mm², 300 mm length / customised
- Connectors
- MC4-compatible
Operating Properties
- Temperature range
- -40 °C to +85 °C
- Maximum system voltage
- 1500 VDC
- Power tolerance
- 0 ~ +5 W
- Bifaciality factor (as per lab)
- 80 ± 5%
Temperature Coefficient
- NOCT (Nominal Operating Cell Temperature)
- 45 °C (±2 °C)
- Temperature coefficient of Pmax
- -0.30% / °C
- Temperature coefficient of Voc
- -0.25% / °C
- Temperature coefficient of Isc
- 0.04% / °C

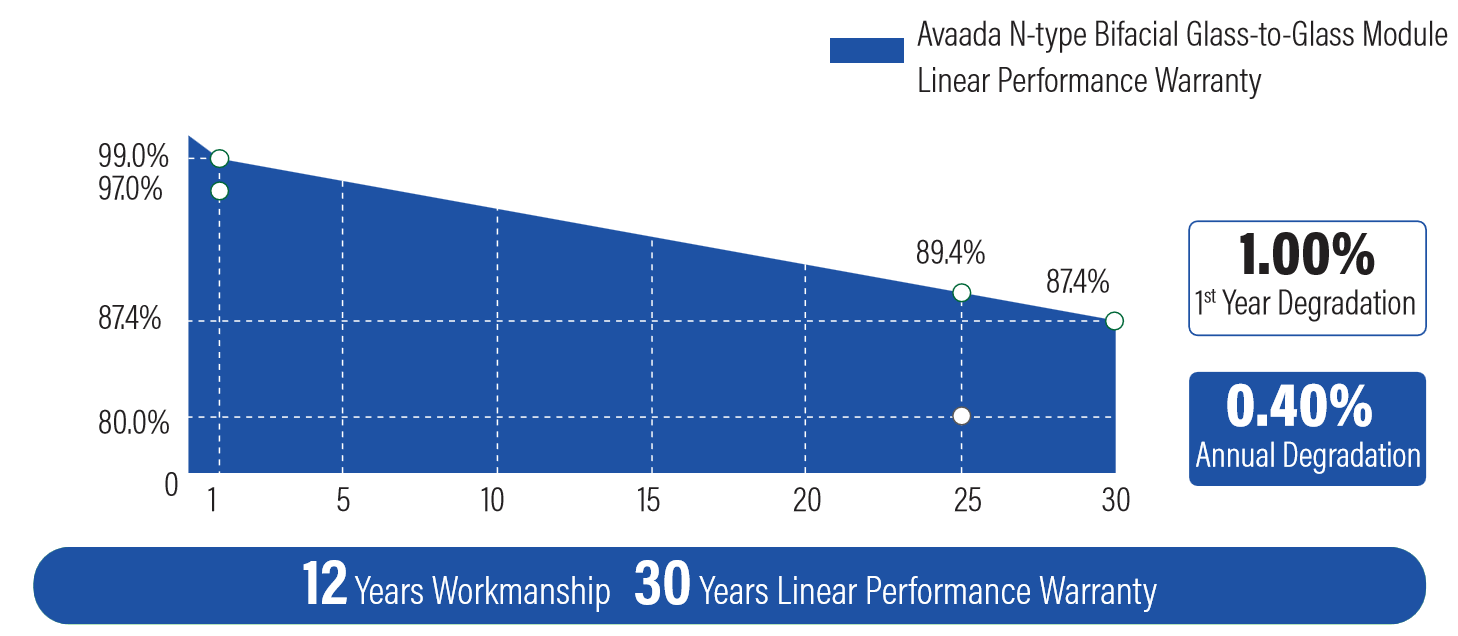

Performance Warranty
12 Years Workmanship · 30 Years Linear Performance Warranty
Warranty claims apply only when the manufacturer's installation guidelines are followed.
Certifications
- BIS
- IEC 61730
- IEC 61215
- UL 61730
- IEC 62804 (PID)
- IEC 61701 (Salt Mist)
- IEC 61716 (Ammonia)
- IEC 62782
- LID, LeTID
- IEC 60068 (Sand & Dust)
- CEC
- CE
A few certifications are in process.
Packing Configuration
Looking for Avaada solar panels
in Tamil Nadu?
Talk to Festa Solar for pricing, availability and supply of Avaada Enlume TOPCon modules.
